Smart Shelves for every reel size.

Four configurations cover the full SMT reel range — from compact 7" double-sided units, through 13/15" single- and double-sided shelves, to mobile carts with a built-in touchscreen. All with pick-to-light guidance and sensor-confirmed picking.

Each shelf is configured around your reel mix, line layout and integration stack — not pulled from a catalogue.

Why switch

Manual shelves vs. NORDEC Smart Shelves.

A side-by-side look at how Nordec changes the day-to-day on your SMT line.

Picking time
Manual shelf: 20–45 seconds per reel
NORDEC Smart Shelf: 3 seconds once the LED indicates the position
Picking method
Manual shelf: Operator searches manually
NORDEC Smart Shelf: Pick-by-light, guided in the sequence on the pick list
Confirmation
Manual shelf: Nothing confirms the right reel was taken
NORDEC Smart Shelf: Sensors confirm removal from and placement in the indicated position
Inventory control
Manual shelf: Periodic scans / spreadsheets
NORDEC Smart Shelf: Reels registered to a location, so stock and position stay current
Software
Manual shelf: Manual data entry
NORDEC Smart Shelf: Nordec WMS included; other ERP / MES connections assessed per project
Cost
Manual shelf: Low upfront, high labour cost
NORDEC Smart Shelf: From €8 per reel position — based on a 7" shelf configured for 8 mm tape

Compare the models

Which shelf fits your reels?

Capacity varies with tape width and configuration. Figures are per unit for the configuration shown.

Small reels · Double-sided

Smart Shelf — 7"

Capacity
Up to 1344
Six layers configured for 8 mm tape
Tape widths
8–44 mm
L × D × H
2254 mm × 400 mm × 1705 mm
Best fit
High volumes of 7" reels, line-side
Details
Large reels · Single-sided

Smart Shelf — 13"/15"

Capacity
Up to 448
Four layers configured for 8 mm tape
Tape widths
8–72 mm
L × D × H
2254 mm × 400 mm × 1705 mm
Best fit
Large reels with full front access
Details
Large reels · Double-sided

Smart Shelf — 13"/15" Double-Sided

Capacity
Up to 896
Four layers configured for 8 mm tape
Tape widths
8–72 mm
L × D × H
2254 mm × 700 mm × 1705 mm
Best fit
Largest reel buffer per unit
Details
Configurable · Touchscreen

Smart Shelf — Mobile

Capacity
Configurable
Four configurable layers — quoted per configuration
Tape widths
Mixed
L × D × H
1370 mm × 400 mm × 1340 mm
Best fit
Kitting and line refill on the move
Details
3 sec
Per reel once the LED indicates it
Confirmed
Sensor-confirmed picking
Modular
Configurable per layer
From €8
Per reel position · 7" shelf, 8 mm tape
Smart Shelf — 7" — Small reels · Double-sided
Small reels · Double-sided

Smart Shelf — 7"

Double-sided storage for 7" reels, so a single unit holds a large small-reel buffer line-side instead of spreading it over open shelving.

Capacity
Up to 1344
Six layers configured for 8 mm tape
Tape widths
8–44 mm
6 layers
Key specs
  • Up to 1344 reels — six layers configured for 8 mm tape
  • Supports 8–44 mm tape widths (wider on request)
  • Mixed widths freely within the same shelf
  • Double-sided storage
  • FIFO sequencing through registered reel locations
  • Castor-mounted, mobile
  • Pick-to-light guidance — 3 sec per reel once indicated
  • Sensor-confirmed picking
  • Runs on Nordec WMS out of the box
Length
2254 mm
Depth
400 mm
Height
1705 mm

Length × depth × height.

Enquire about this shelfPlan your layout

Each shelf is configured to your reel mix, footprint and material flow.

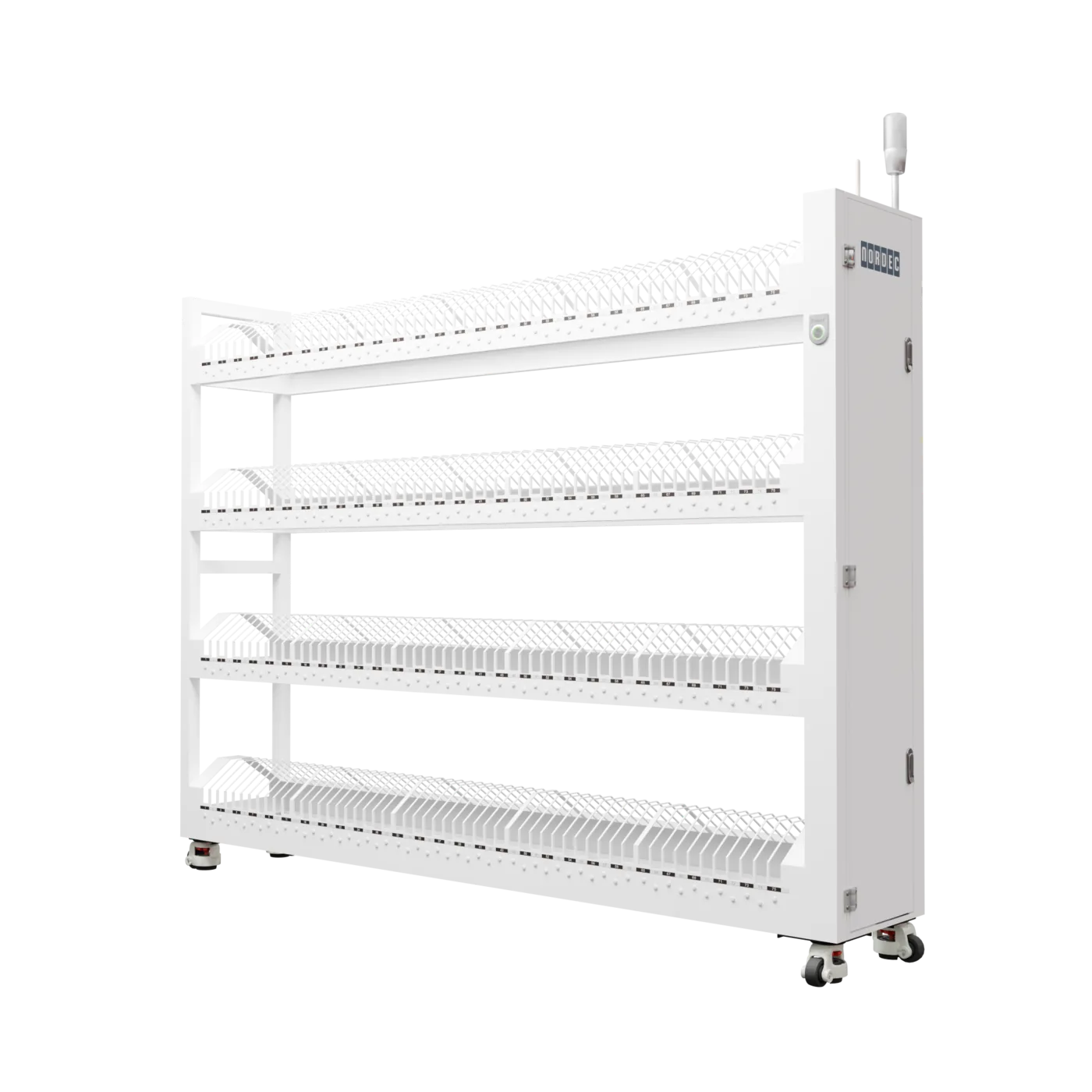

Smart Shelf — 13"/15" — Large reels · Single-sided
Large reels · Single-sided

Smart Shelf — 13"/15"

Single-sided shelving for 13" and 15" reels, with reinforced layers and the full 8–72 mm tape range.

Capacity
Up to 448
Four layers configured for 8 mm tape
Tape widths
8–72 mm
4 layers
Key specs
  • Up to 448 reels — four layers configured for 8 mm tape
  • Supports 8–72 mm tape widths
  • Single-sided, reinforced shelves
  • Configurable per layer
  • Pick-to-light guidance
  • Sensor-confirmed picking
  • Reel positions registered and tracked
  • Runs on Nordec WMS out of the box
Length
2254 mm
Depth
400 mm
Height
1705 mm

Length × depth × height.

Enquire about this shelfPlan your layout

Each shelf is configured to your reel mix, footprint and material flow.

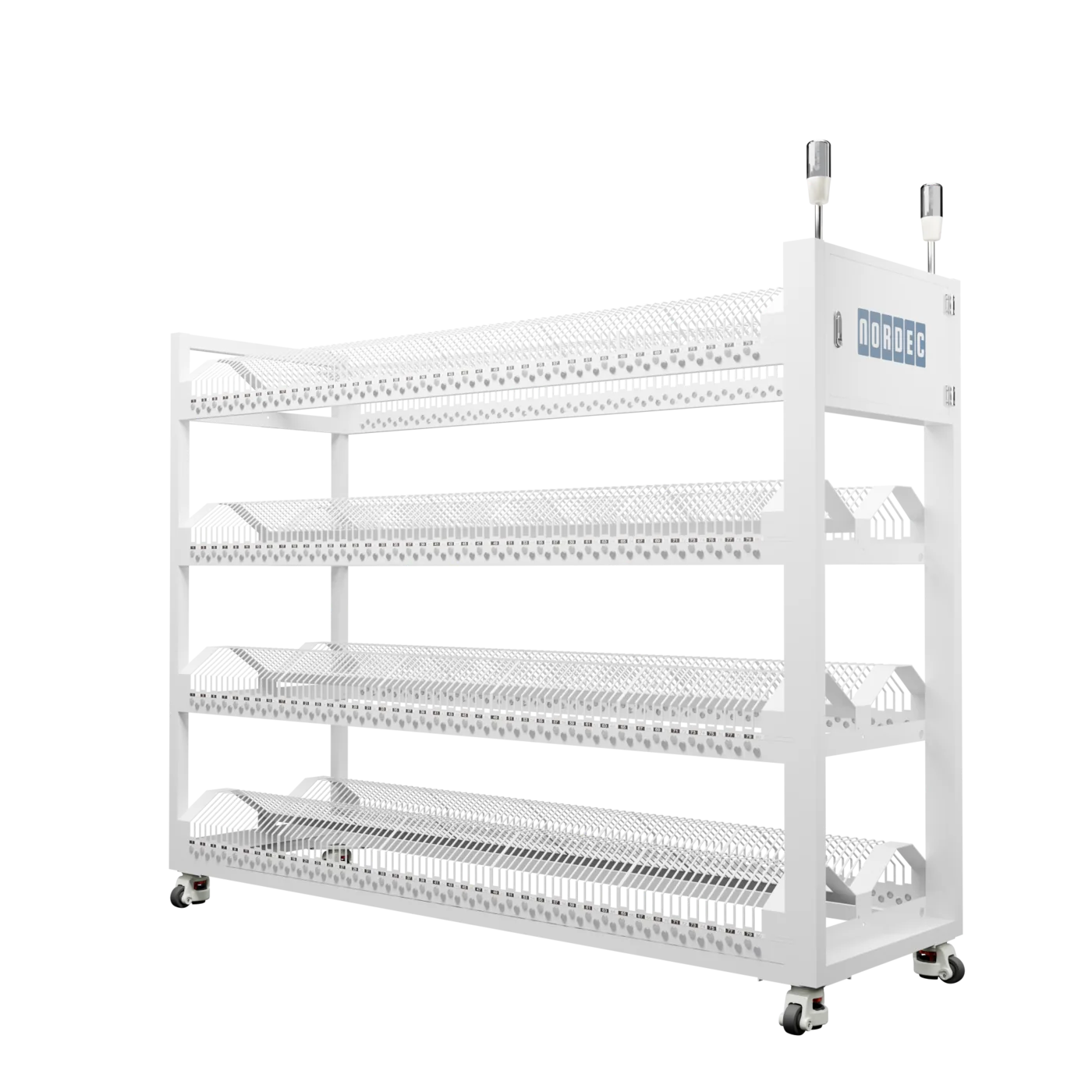

Smart Shelf — 13"/15" Double-Sided — Large reels · Double-sided
Large reels · Double-sided

Smart Shelf — 13"/15" Double-Sided

Double-sided 13"/15" storage — up to 896 reels per unit, with the same 3-second guided pick.

Capacity
Up to 896
Four layers configured for 8 mm tape
Tape widths
8–72 mm
4 layers
Key specs
  • Up to 896 reels — four layers configured for 8 mm tape
  • Supports 8–72 mm tape widths
  • Double-sided, loaded and picked from both sides
  • Reinforced shelves for large reels
  • Configurable per layer
  • Pick-to-light guidance
  • Sensor-confirmed picking
  • Runs on Nordec WMS out of the box
Length
2254 mm
Depth
700 mm
Height
1705 mm

Length × depth × height.

Enquire about this shelfPlan your layout

Each shelf is configured to your reel mix, footprint and material flow.

Smart Shelf — Mobile — Configurable · Touchscreen
Configurable · Touchscreen

Smart Shelf — Mobile

Mobile shelf with a built-in touchscreen and four configurable layers. Move material to the line, not the line to material.

Capacity
Configurable
Four configurable layers — quoted per configuration
Tape widths
Mixed
4 configurable layers
Key specs
  • Mixes 7", 13" and 15" reels
  • 4 freely configurable layers
  • Capacity depends on your configuration and reel mix
  • Built-in touchscreen interface
  • Castor-mounted, fully mobile
  • Pick-to-light guidance
  • Reel positions registered on the cart
  • Runs on Nordec WMS out of the box
Length
1370 mm
Depth
400 mm
Height
1340 mm

Length × depth × height.

Enquire about this shelfPlan your layout

Each shelf is configured to your reel mix, footprint and material flow.

Software & workflow

Nordec WMS runs the Smart Shelves out of the box.

Other ERP and MES connections are assessed per project; we configure and commission the setup for your site. See how this works in practice in the Plejd material-flow case study.

Step 1

Receive

Scan the shelf or cart and the reel, place it in the position shown, and finish the transaction. The reel is now registered to a location.

Step 2

Request

Select the pick list and the storage unit it should be picked from.

Step 3

Pick

LEDs indicate the required reel positions. The light switches off once the reel has been removed.

Step 4

Complete

The transaction is closed and the picked reels leave the registered locations.

See it in action

A short demonstration of storing and picking SMT reels on NORDEC Smart Shelves: the LED shows the position, the operator places or removes the reel, and the light switches off once the action is confirmed.

More videos on Nordec's YouTube channel

Built around your line

Need a custom configuration? We design it with you.

Every SMT line is different. Tell us your reel mix, footprint and material flow — we'll configure a shelf tailored to your space, capacity and changeover targets. No off-the-shelf compromises.

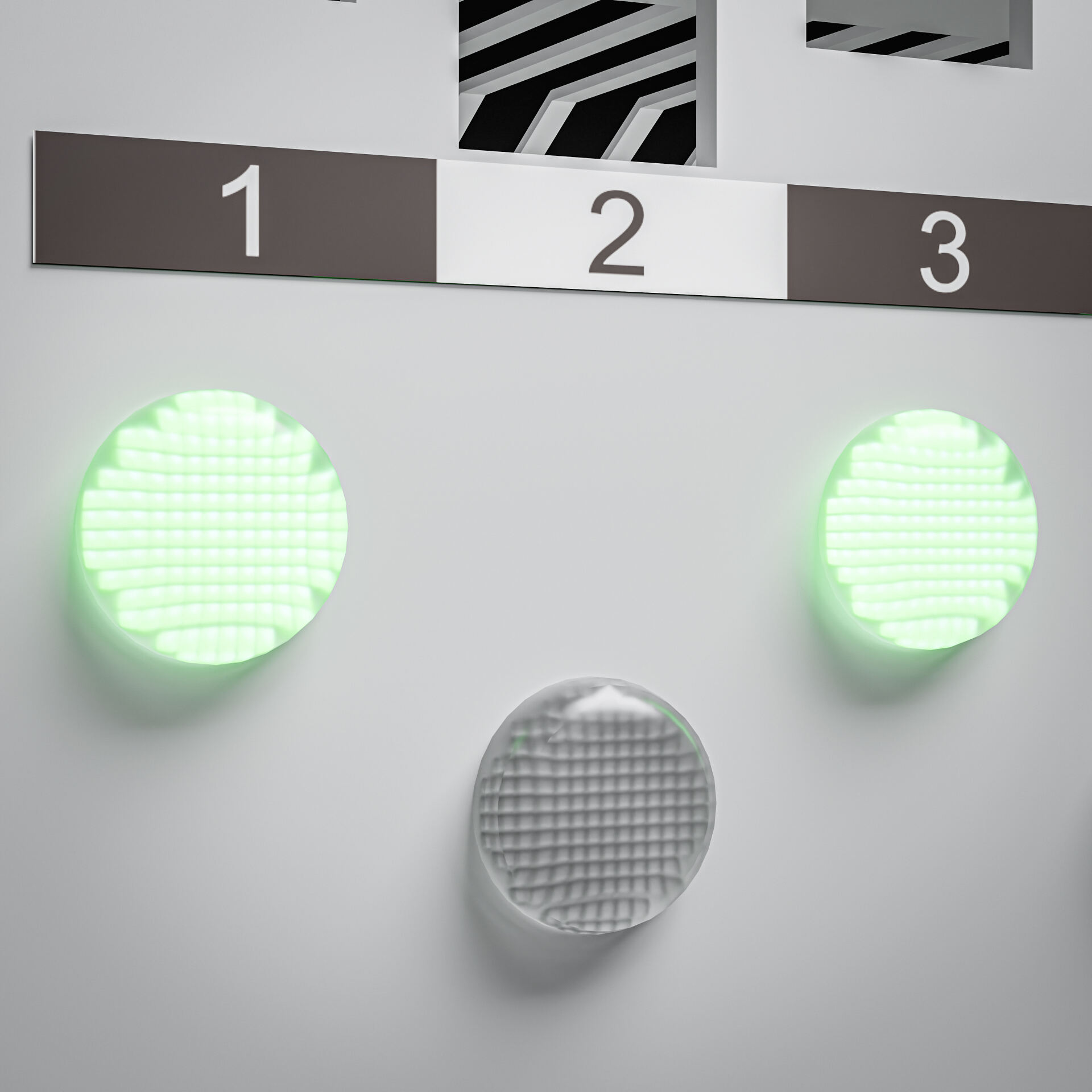

Custom-configured NORDEC Smart Shelf with pick-to-light guidance
Tailored fit
Your reels. Your line. Your shelf.

Sized to your space

Give us your floor footprint and aisle clearance — then we design a shelf-setup that fits without wasting an inch.

Configured for your reel mix

Single- or double-sided. Mix 7", 13" and 15" reels across configurable layers. Optimised slot density for your actual reel mix.

Purpose of storage

Small line refill stock / medium buffer storage or main warehouse.

Let's design your shelves together.

Send us your line layout and reel inventory — we'll come back with capacity, dimensions and an ROI estimate.

Start a custom quote
